ISR & Airborne Intelligence
Persistent, wide-area airborne intelligence, from tasking through dissemination, managed as a complete program.
Platform 02 · Fixed-wing ISR

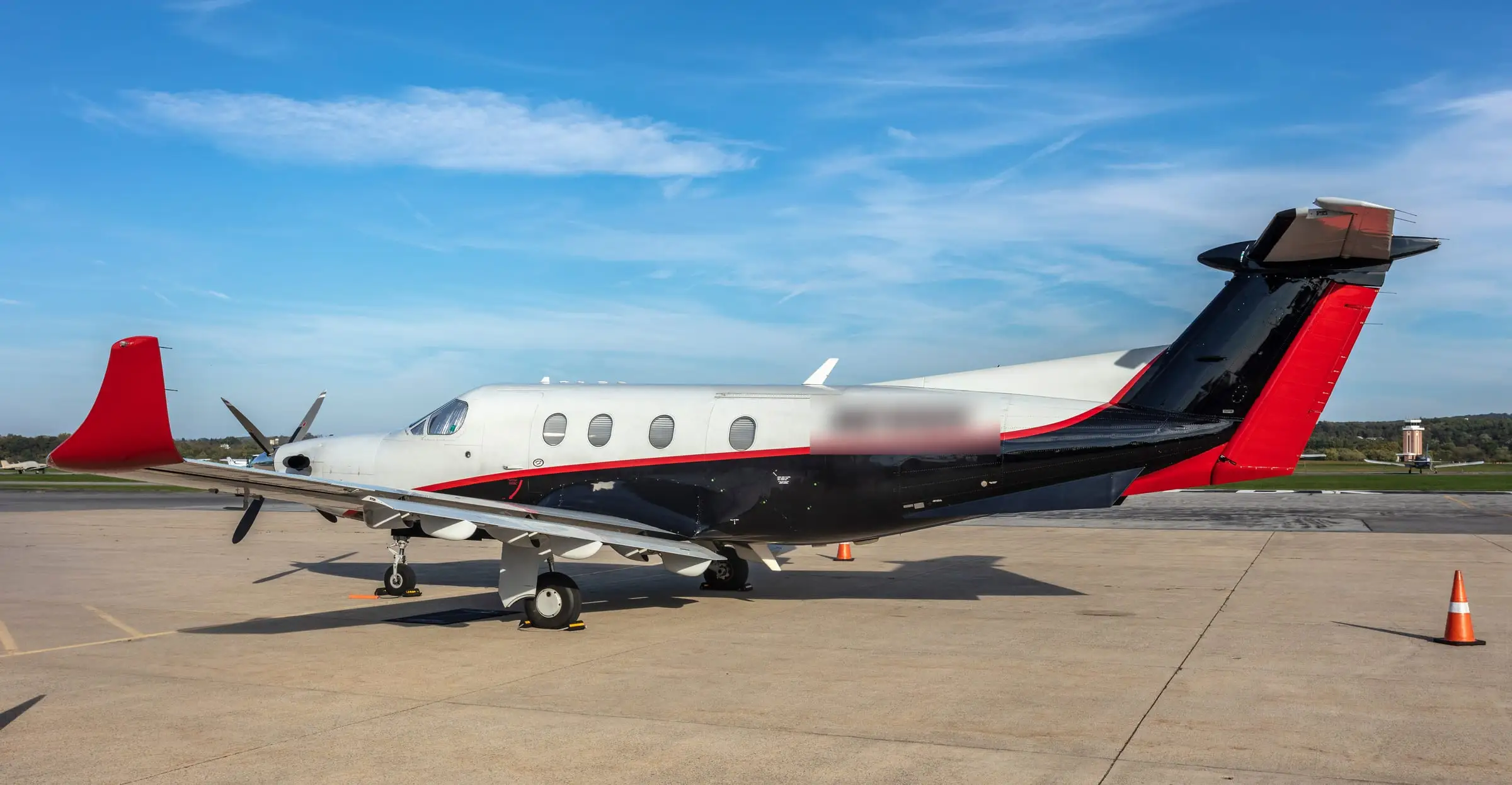

Pilatus PC-12.
The PC-12 is the versatile middle option in Alpha Federal's ISR configurations: a single turboprop capable of operating from austere runways at a lower cost per flight hour, which makes sustained coverage affordable where infrastructure is limited.
Published airframe specification
- Airframe
- Pilatus PC-12
- Maximum cruise speed
- 290 kt (537 km/h)
- Maximum range cruise
- 1,889 nm (3,498 km)
- Range at maximum payload
- 694 nm (1,285 km)
- Take-off distance
- 2,485 ft (757 m)
- Maximum take-off weight
- 10,450 lb (4,740 kg)
- Maximum payload
- 2,236 lb (1,014 kg)
- Maximum payload with full fuel
- 988 lb (448 kg)
- Rate of climb (MTOW, sea level)
- 1,920 ft/min (9.75 m/s)
- Engine
- Pratt & Whitney Canada PT6E-67XP, 1,200 shp
- Runway surfaces
- Grass, gravel, dirt, snow or paved
As Alpha Federal configures it
Published airframe figures are not the same claim as what this aircraft does with a sensor turret, an operator station and a downlink aboard. These are the numbers that describe the mission configuration.
- Endurance in ISR configuration
- Long for a single-engine turboprop, and the reason the type is chosen. Sensor drag and mission-system power draw reduce it below the published figure; it remains a multi-hour orbit aircraft.
- Sensor payload fitted

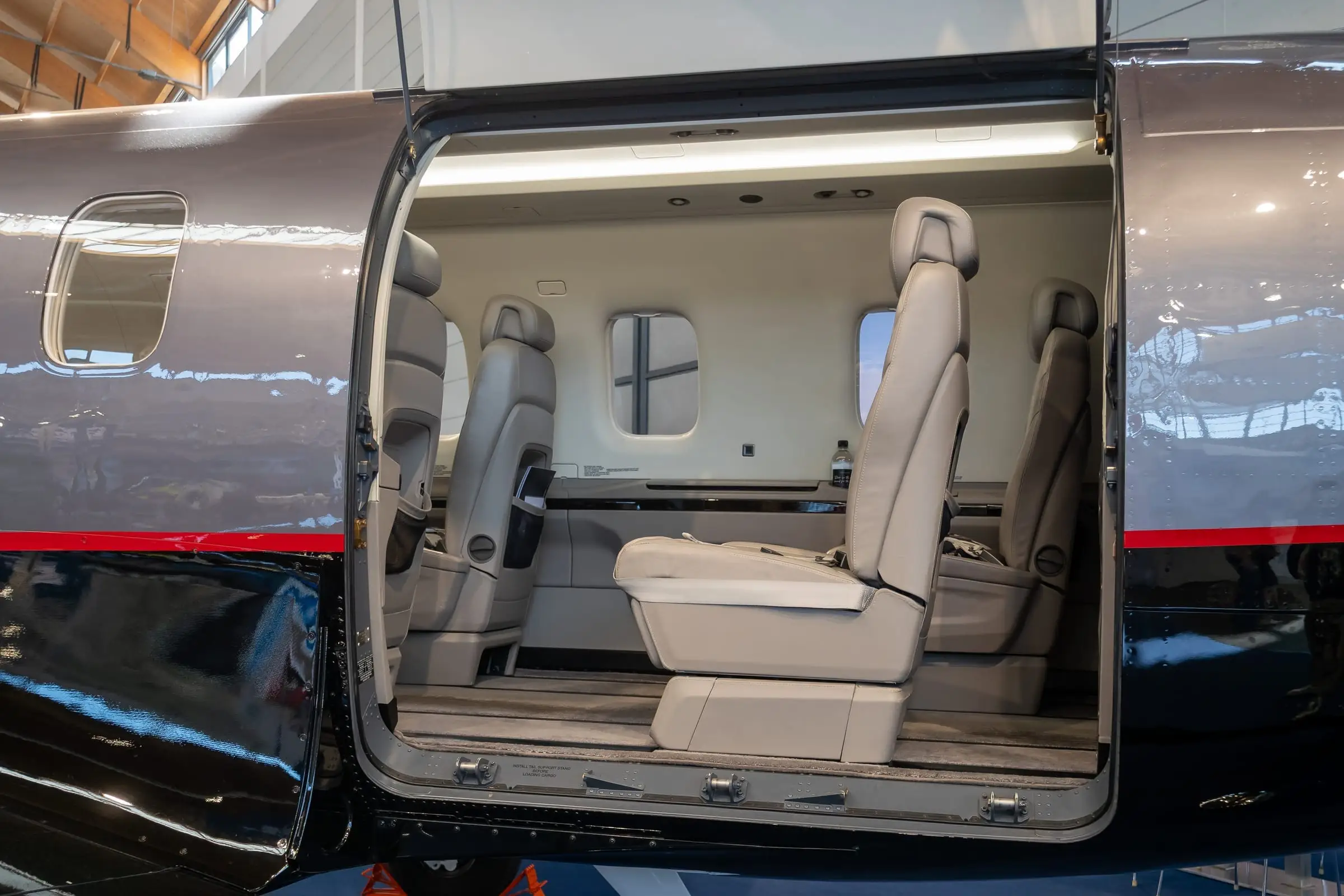

- Belly-mounted EO/IR turret as the baseline. The cargo door and flat cabin floor make operator station layout unusually flexible for the class.
- Mission crew
- One or two pilots plus one to two mission operators. Single-pilot certification gives real crewing flexibility that a twin does not.
- Relative cost band
- Middle of the three on acquisition, and the lowest operating cost per hour of any aircraft here that can hold a long orbit. Usually the efficient answer when the requirement is endurance on a constrained budget.
Where this airframe earns its cost.
Programs where the operating area has limited runway infrastructure, or where the flight-hour budget has to stretch across sustained coverage rather than peak capability. Single-engine economics change what a ministry can afford to fly per month, and that often matters more to program outcomes than raw sensor reach.
Infrastructure required
- Runway surface & length
- Shorter field requirement than the King Air and genuinely unpaved-capable. This is the type that reaches strips a twin cannot.
- Hangarage
- Preferred but not essential for the airframe. Preferred for the mission system in humid or dust-heavy environments.
- Fuel & servicing
- Jet A. Single engine keeps the scheduled maintenance burden materially lower than the twin.
- Ground station link
- Line-of-sight datalink as the baseline, with satellite beyond-line-of-sight available where the mission requires it.
Common Questions
What does single-engine mean for operational risk over water or jungle?
It is a real consideration and it is manageable rather than disqualifying. The PT6 family has an exceptional reliability record and the type is certified and widely flown for single-engine commercial operations, including over hostile terrain. What it means in practice is route planning with glide-range awareness, survival equipment appropriate to the environment, and a customer decision about risk appetite that should be made explicitly rather than by default.
What runway lengths and surfaces can it use?
Pilatus publishes a take-off distance of 2,485 ft over a 50 ft obstacle at maximum take-off weight, sea level, standard day, on a dry paved runway, and the type is certified for grass, gravel, dirt and snow. In practice it reaches strips a King Air cannot, which is frequently the reason it is selected.
How much sensor capability do you give up versus a King Air?
Less than most people expect for a single EO/IR fit, and more if the requirement is multi-sensor. A modern compact turret on a PC-12 delivers detection ranges close to what the same class delivers on a larger aircraft. What you give up is the capacity to carry a second large aperture, multiple operator stations and the electrical load a wide-area payload demands.
What is the realistic cost-per-hour difference?
Substantially cheaper than the King Air and somewhat more expensive than the Caravan, driven mostly by one engine rather than two and by fuel burn at cruise. We will not quote a figure on a public page because it depends on your fuel price, utilization, crewing model and maintenance arrangement — but the ordering between the three types is stable everywhere.
Can it carry an operator station as well as the sensor?
Yes. The flat cabin floor and large cargo door make operator station layout unusually flexible for the class, and one to two mission operator positions alongside a belly turret is a normal fit. Adding positions beyond that starts to compete with fuel for available payload, which is the real constraint rather than space.
Is it a good first ISR aircraft for a new program?
Often, yes — for a reason that has nothing to do with the airframe. Single-engine economics change how many hours a ministry can afford to fly per month, and persistence matters more to intelligence outcomes than peak sensor reach. An aircraft you can afford to fly daily produces pattern-of-life; a more capable one you can only afford to fly weekly does not.
