Border & Territorial Security
Every border security problem is different. We assess your terrain, threat profile and existing capability, then configure the solution that fits.
Platform 03 · Fixed-wing ISR

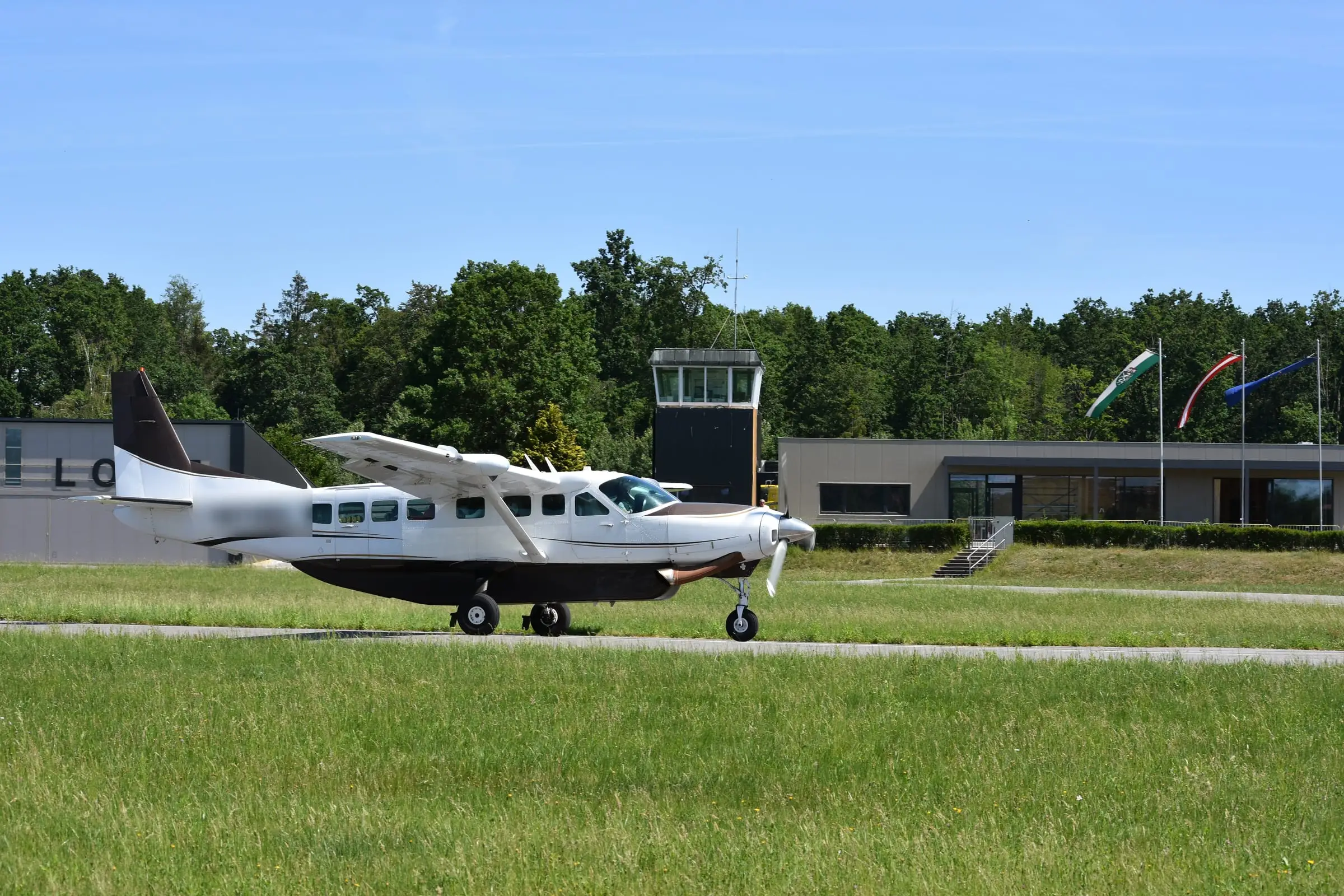

Cessna 208 Caravan.
The Caravan 208 is the accessibility option in Alpha Federal's ISR configurations: rugged, simple to sustain and able to operate with minimal ground infrastructure, which puts airborne coverage within reach of programs that cannot support a larger airframe.
Published airframe specification
- Airframe
- Cessna 208 Caravan
- Maximum cruise speed
- 185 ktas (343 km/h)
- Maximum range
- 912 nm (1,689 km)
- Take-off ground roll
- 1,399 ft (426 m)
- Maximum take-off weight
- 8,807 lb (3,995 kg)
- Useful load
- 3,532 lb (1,602 kg)
- Maximum climb rate
- 1,275 ft/min (389 m/min)
- Engine
- Pratt & Whitney Canada PT6A-140, 867 shp (647 kW)
- Maximum occupants
- 10–14

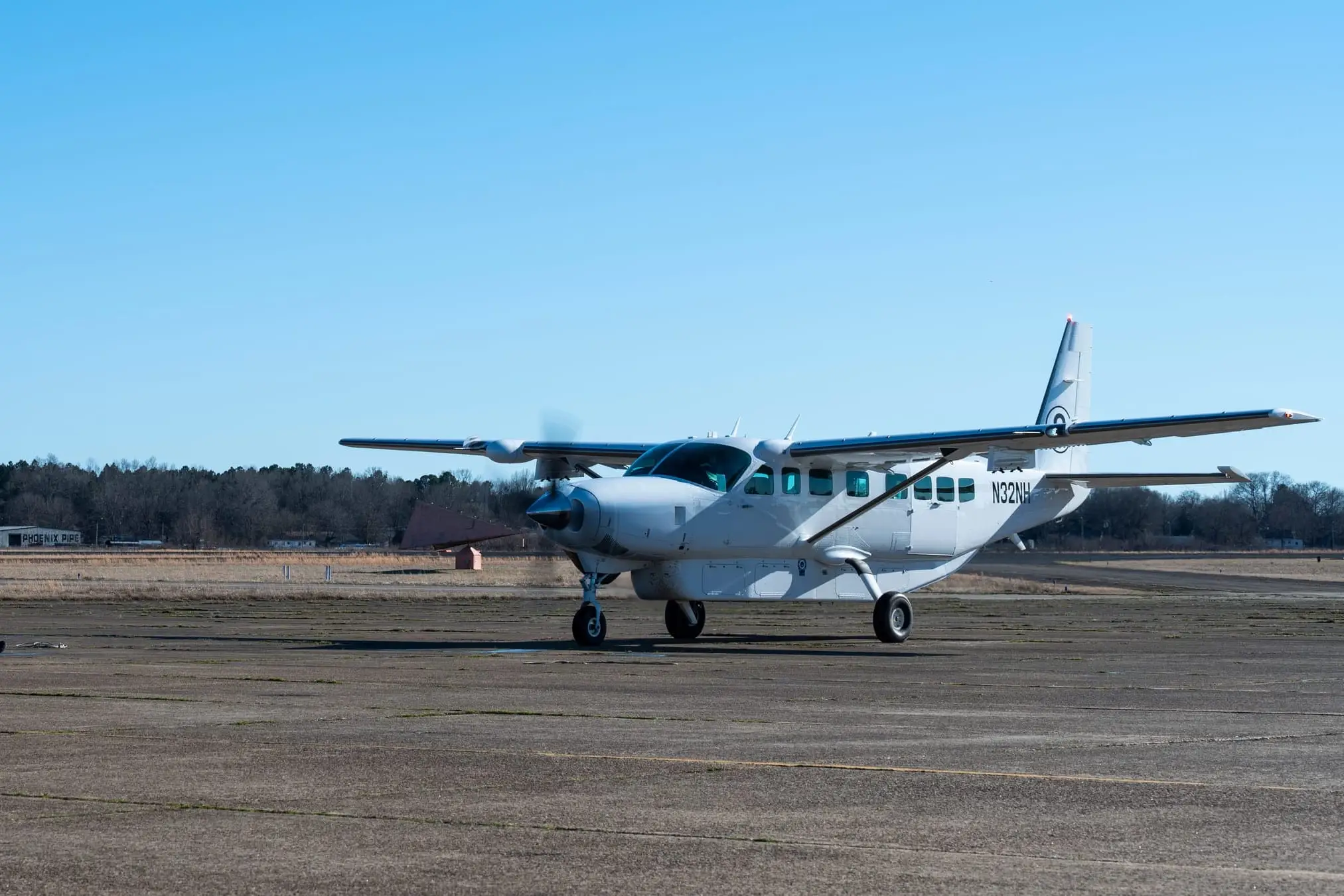

As Alpha Federal configures it
Published airframe figures are not the same claim as what this aircraft does with a sensor turret, an operator station and a downlink aboard. These are the numbers that describe the mission configuration.
- Endurance in ISR configuration
- Shortest of the three. The Caravan is selected for access and payload flexibility rather than time on station, and the tasking should be built around that.

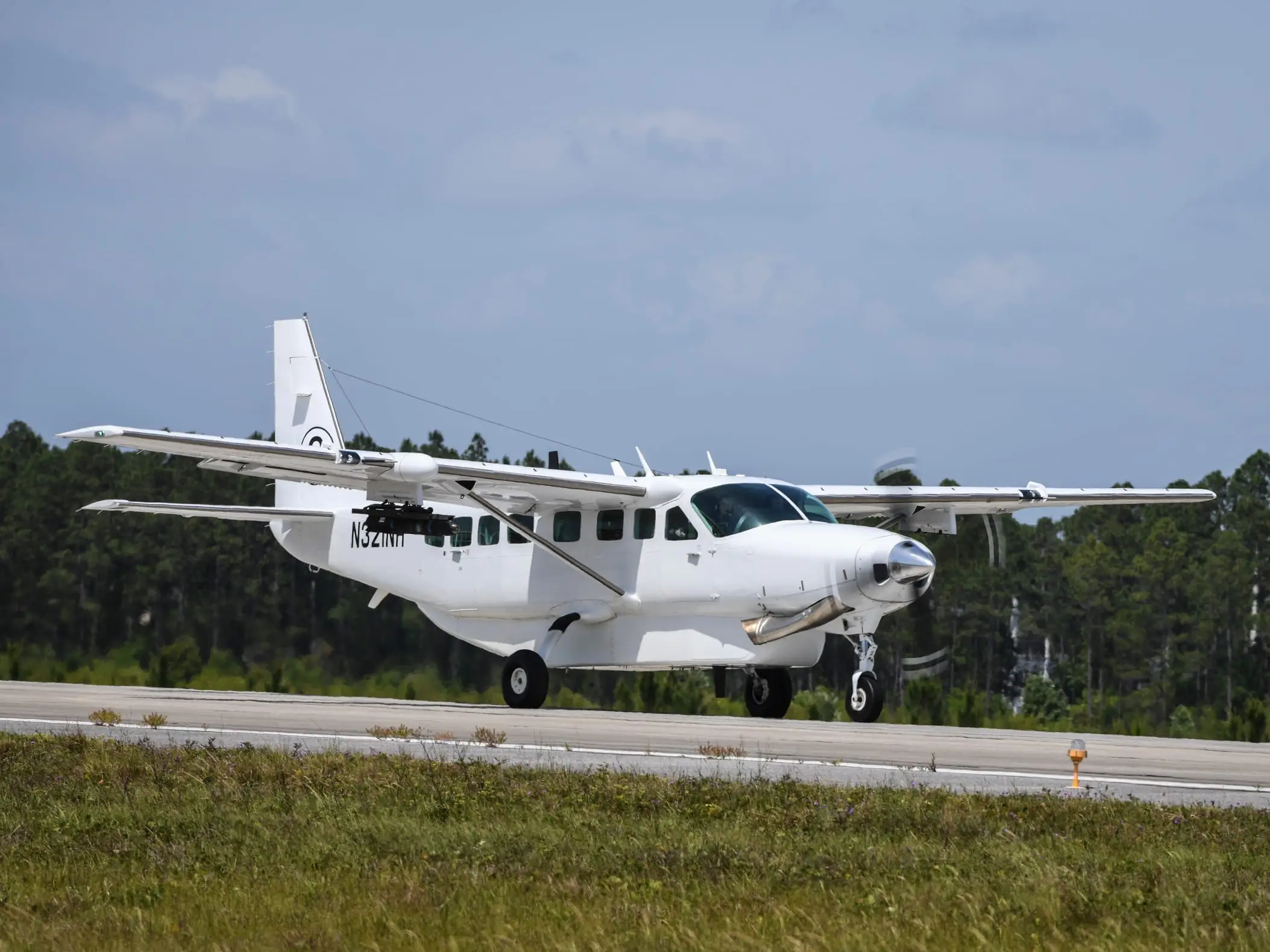

- Sensor payload fitted
- EO/IR turret on a belly or cargo-pod mount. The cargo pod is the type’s real advantage — it takes mission equipment without consuming cabin volume.
- Mission crew
- One or two pilots plus one to two mission operators. The cabin also carries people and cargo, which is often the point.
- Relative cost band
- Lowest acquisition and operating cost of the three, and the easiest to sustain in a country with no existing turbine fleet. Also the least capable on endurance — that is the trade.
Where this airframe earns its cost.
Programs operating far from established aviation infrastructure, or early-stage programs where the objective is to establish a sustainable operating rhythm before scaling. Simplicity of sustainment is the point: an aircraft that flies is worth more than a more capable one that is grounded waiting on parts.
Infrastructure required
- Runway surface & length
- Shortest and roughest of the three. Unimproved strips, grass and dirt are within the type’s normal envelope.
- Hangarage
- Not required for the airframe. Covered maintenance still recommended for the mission system.
- Fuel & servicing
- Jet A. Simple systems and wide global parts availability make it the most sustainable of the three in an austere location.
- Ground station link
- Line-of-sight datalink as the baseline. Shorter orbits usually keep it inside LOS of the ground station.
Common Questions
What is the minimum infrastructure to operate this aircraft?
Less than anything else we offer. A short unimproved strip, a Jet A supply, basic covered working space and locally trainable technicians is genuinely enough. It is the type to choose when the constraint is what exists at the operating location rather than what the mission would ideally like.
What endurance can we expect in an ISR configuration?
The shortest of the three, and the trade you accept for its access and payload flexibility. It is well suited to repeated shorter sorties from a strip close to the area of interest, and poorly suited to holding a long orbit far from base. Tasking should be built around that rather than fighting it.
Is it suitable for maritime or coastal patrol?
For coastal and littoral work, yes — particularly where it can operate from a short strip near the coastline. For extended over-water patrol far from land it is not the right answer, both because of endurance and because single-engine operation far offshore is a risk decision most customers decline. Amphibious variants exist and change the calculus for some island and riverine missions.
How does sustainment compare to the other two airframes?
It is the easiest of the three by a wide margin. Simple systems, an enormous global operator base, wide parts availability and a maintenance burden that local technicians can be trained to carry. In a country with no existing turbine fleet, this is usually the type that can actually be sustained after the contractor leaves.
Can local maintainers be trained to sustain it?
Yes, and more readily than for either other type. That is a significant argument for the Caravan in a transfer program: the training pipeline is shorter, the aircraft is more forgiving of a developing maintenance organization, and the global parts network means a mistake is recoverable rather than grounding.
What is the trade-off against a larger airframe?
You trade endurance, altitude and payload for accessibility and simplicity of sustainment. That is the right trade when the operating area is far from established aviation infrastructure, or when the objective is to establish a sustainable operating rhythm before scaling. An aircraft that flies is worth more than a more capable one grounded waiting on parts.
